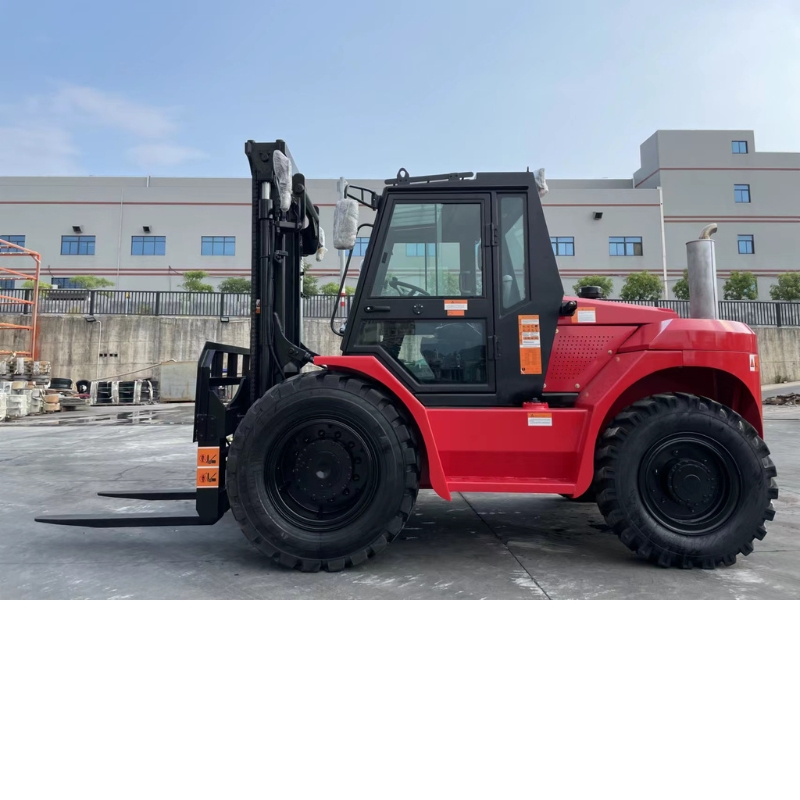

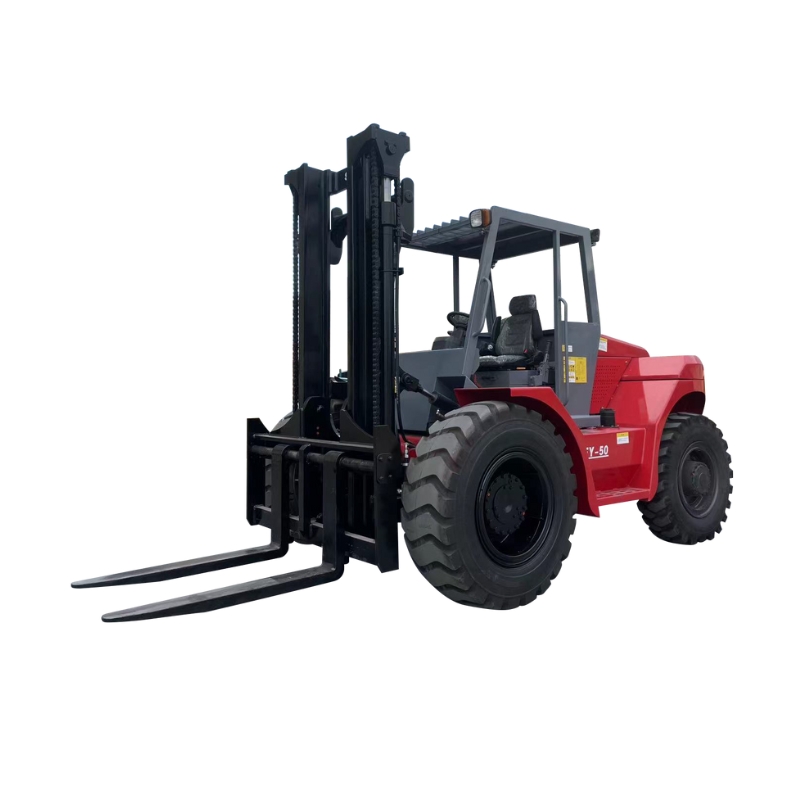

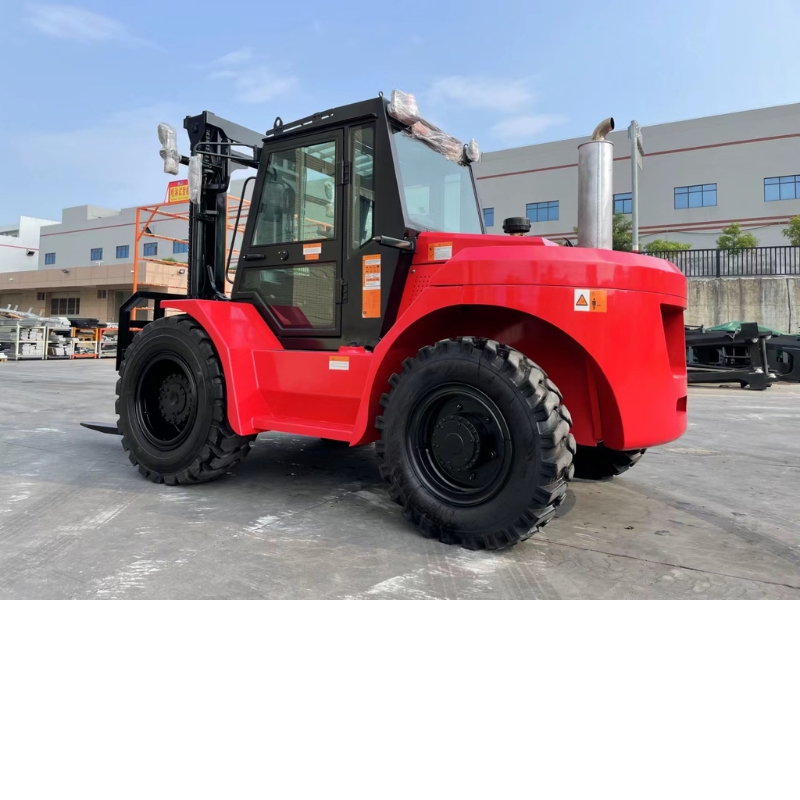

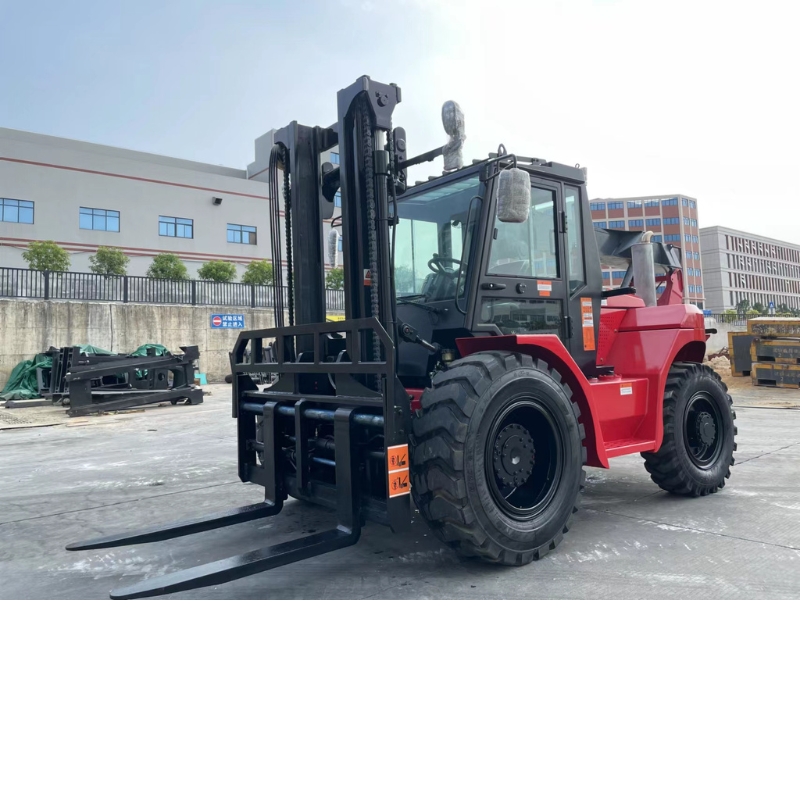

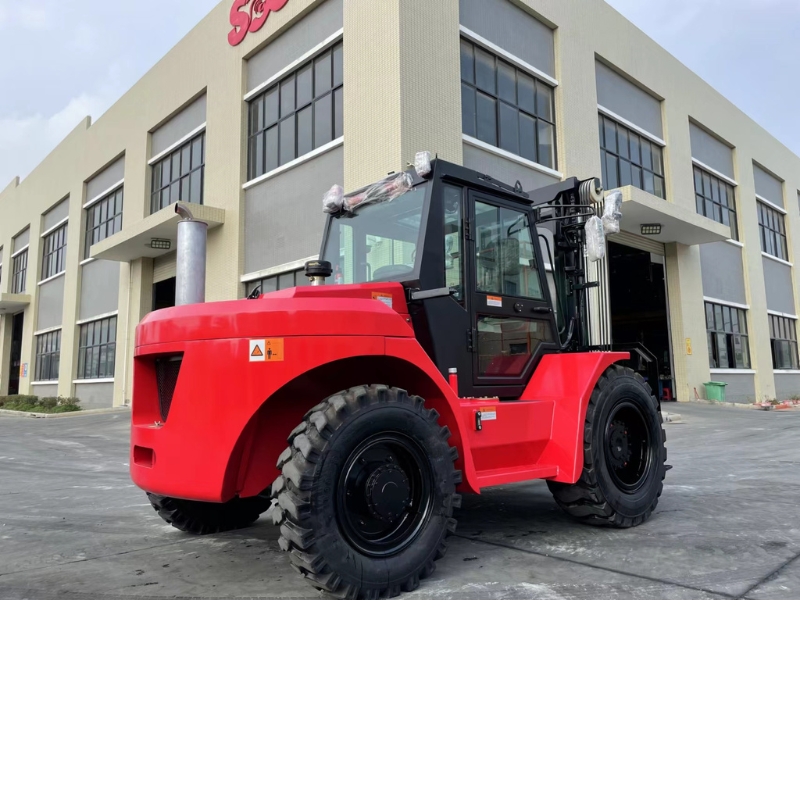

SOCMA HNFY-50 Rough Terrain Forklift

Product Description

The SOCMA HNFY-50 Rough Terrain Forklift is designed for rugged environments, offering a 5-ton lifting capacity with exceptional stability. Its wheel-side reducer drive axle enhances traction and performance on uneven terrain, making it ideal for construction, mining, and agricultural applications.

Equipped with full hydraulic transmission and electric control shift, the HNFY-50 ensures smooth and precise operation. The high exhaust system reduces noise and optimizes thermal performance, providing a comfortable and efficient working environment for operators.

Featuring a streamlined body design and panoramic cab, the HNFY-50 combines aesthetics with functionality. The optimized weight distribution enhances stability, while the ergonomic gear lever and wide-view frame improve operator safety and productivity.

Product Parameter

Rated Load: 5 tons

Load Center: 600 mm

Wheelbase: 2700 mm

Weight: 8700 kg

Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees

Mast Height (Fork Lowering): 2800 mm

Lift Height (Bottom of Forks): 3000 mm

Height of Mast Extended (Unloaded): 4280 mm

Height to Head Guard/Height to Cab: 2600 mm

Overall Length: 5150 mm

Fork Front Vertical Surface to Rear End of Vehicle: 3900 mm

Overall Width: 2280 mm

Fork Dimension: 1200x150x60 mm

Mast Min Ground Clearance (with Load): 230 mm

Wheelbase Center Min Ground Clearance (with Load): 350 mm

Min Turning Radius: 4800 mm

Travel Speed (with Load/without Load): 23/26 km/h

Max Lifting Speed (with Load/without Load): 300/320 mm/s

Max Lowering Speed (with Load/without Load): 360/340 mm/s

Traction: 4000 N

Gradeability (with Load/without Load): 20/22 %

Driving Brake: Hydraulic clamp disc

Tire Specs - Front: 18/70-24PR

Tire Specs - Rear: 10.00-20PR

Tires Qty (Front/Rear - Drive Wheels): 2/2

Wheel Tread - Front: 1870 mm

Wheel Tread - Rear: 1840 mm

Engine Brand/Model: Dongfeng Cummins 4BTA3.9-C80

Cylinder No.: 4

Transmission Gears (Front/Rear): 2/2

Attachments Working Pressure: 18 bar

Attachments Using Oil Amount: 200 l/min
