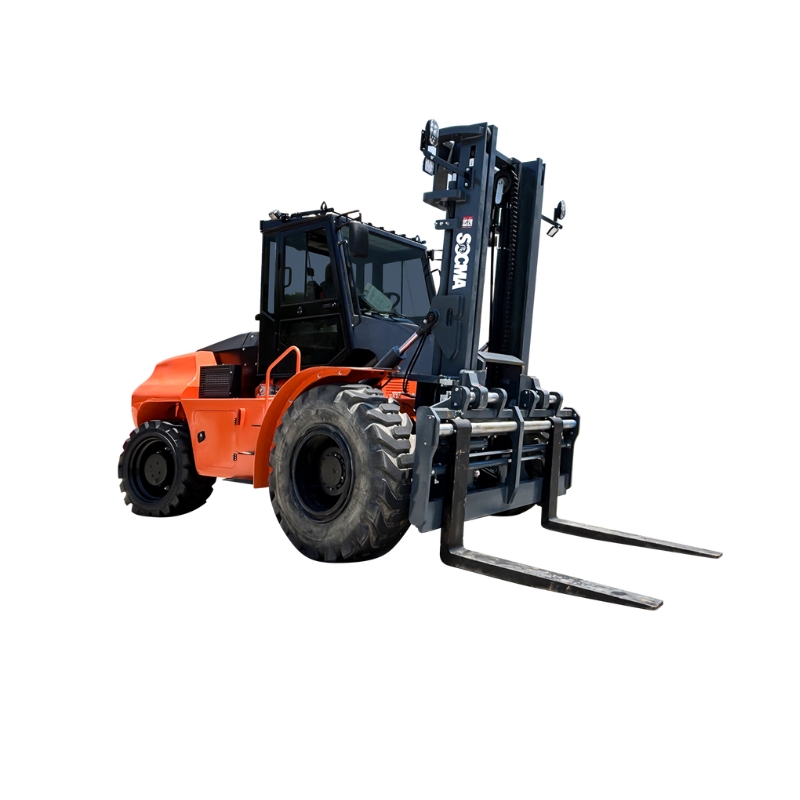

SOCMA 10 Ton Rough Terrain Forklift

Product Description

The SOCMA 10 Ton Rough Terrain Forklift is designed for tough outdoor conditions, offering a 10-ton lifting capacity with exceptional stability. Its 4WD system and wheel-side reducer drive axle provide superior traction on uneven terrain, making it ideal for ports, construction sites, and mining operations.

Equipped with a powerful Dongfeng Cummins engine and full hydraulic transmission, the SOCMA 10 Ton model ensures efficient and smooth operation. The high exhaust system reduces noise and enhances thermal performance, delivering a comfortable environment for operators in demanding settings.

Featuring an ergonomic panoramic cab and a robust frame, this forklift enhances operator safety and productivity. The wide-view mast and optimized weight distribution ensure precise handling and stability, making it a reliable choice for heavy-duty material handling tasks.

Product Parameter

Rated Load: 10 tons

Load Center: 600 mm

Wheelbase: 3000 mm

Weight: 14000 kg

Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees

Mast Height (Fork Lowering): 3100 mm

Lift Height (Bottom of Forks): 4000 mm

Height of Mast Extended (Unloaded): 4800 mm

Height to Head Guard/Height to Cab: 2800 mm

Overall Length: 5600 mm

Fork Front Vertical Surface to Rear End of Vehicle: 4200 mm

Overall Width: 2400 mm

Fork Dimension: 1200x180x80 mm

Mast Min Ground Clearance (with Load): 260 mm

Wheelbase Center Min Ground Clearance (with Load): 400 mm

Min Turning Radius: 5200 mm

Travel Speed (with Load/without Load): 25/28 km/h

Max Lifting Speed (with Load/without Load): 260/280 mm/s

Max Lowering Speed (with Load/without Load): 340/320 mm/s

Traction: 5000 N

Gradeability (with Load/without Load): 20/22 %

Driving Brake: Hydraulic clamp disc

Tire Specs - Front: 18/70-24PR

Tire Specs - Rear: 10.00-20PR

Tires Qty (Front/Rear - Drive Wheels): 2/2

Wheel Tread - Front: 1920 mm

Wheel Tread - Rear: 1870 mm

Engine Brand/Model: Dongfeng Cummins 4BTA3.9-C125

Cylinder No.: 4

Transmission Gears (Front/Rear): 2/2

Attachments Working Pressure: 20 bar

Attachments Using Oil Amount: 250 l/min
